IR-TEC OS-NET

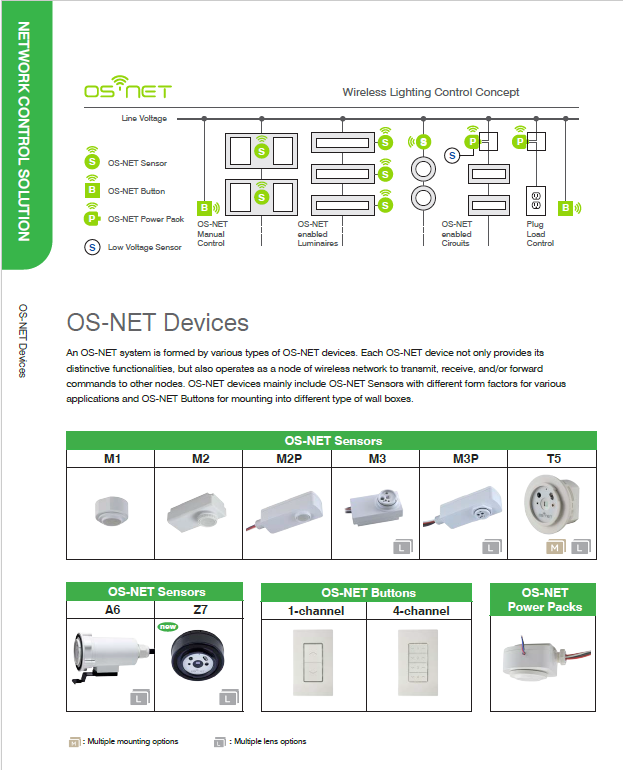

OS-NET wireless control solution
Deploy an IoT wireless mesh network effortlessly
A Zigbee based wireless mesh network can be effortlessly deployed while installing lighting and control devices for commercial and industrial environments. A wireless mesh network broadly established throughout the entire space will be a valuable infrastructure of Internet of Things (IoT).
Flexible device integration allows easy installation
The OS-NET Sensors can be flexibly integrated with OEM luminaires or mounted on the ceiling for lighting circuit control. Unparalleled integration flexibility allows installing the OS-NET enabled lighting system just like installing the conventional luminaires, occupancy sensors and wall switches.
All functionalities in one and one for all controls
Each OS-NET Sensor is packed with multiple sensing and control functionalities to meet different control requirements. Specific control scheme be easily set to execute even the most sophisticated control to the connected lights without requiring complicated devices, wiring, and commissioning.
Individual sensing control with group activation
When a specific OS-NET Sensor of the group detects the presence of occupant, the sensor not only controls the connected lighting as set according to the local condition, but also broadcasts the occupancy status for other devices of the group to activate the programmed controls respectively.
Single device can be member of multiple groups \
A single OS-NET device can be assigned as member of up to 4 groups. This allows multiple lighting groups to be activated simultaneously by the sensor located at the spot with multi-directional traffics. Advanced group control setting enables pre-lighting or directional guide lighting at public areas.
Hybrid Switching protects from inrush current
An advanced Hybrid Switching technology is employed to protect every OS-NET Sensor from being damaged by exceptionally high inrush current while switching on the LED driver. With Hybrid Switching protection, the service lifetime of OS-NET Sensor is guaranteed much longer than others.
SmartDIM constant lighting control technology
SmartDIM control can be programmed in each OS-NET Sensor to perform constant lighting control. This advanced dimming control technology will continuously adjust the lighting output to maintain the overall light level within a preset range based on the occupancy status and ambient light level.
Easy and intuitive IR remote programming tool
Unlike many other network control solutions, OS-NET does not require any proprietary management software, operation app or expensive hardware to make the system run. All you need is just a 2-way IR remote to set up the network, group the devices, set the control scheme, and all other configurations.
Latest ASHRAE 90.1 & CA Title 24 compliant
Versatile functionalities of OS-NET devices are developed and built to comply with the latest building energy codes and standards for non-residential buildings. With simple OS-NET devices installed, you can easily meet most lighting control requirements via some simple remote setting operations.
